Vanbase Fuse Download PDF

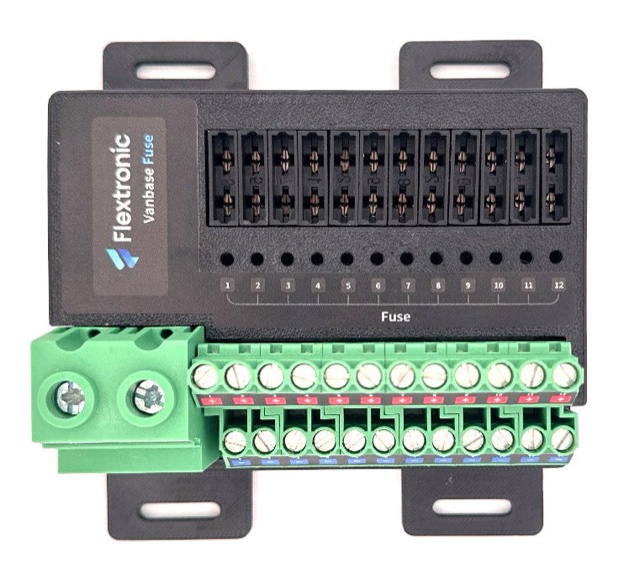

The Vanbase Fuse is a compact fuse holder for protecting up to 12 fused DC outputs in a vehicle.
It is intended for use in electrical systems from 10 V to 30 V DC and provides clearly arranged, space-saving and easily serviceable fuse protection for individual circuits.
- Very space-saving design
- Installation with a screwdriver only, without cable lugs or ferrules
- All connections are located on the underside
- Extra-large input terminals up to 35 mm²
- 12 automotive blade fuses, one for each fused output
The safety instructions must be read in full and observed before installation.
Intended use
The Vanbase Fuse is intended for protecting suitable DC circuits within the technical data specified in this manual. Operation is permitted only in DC electrical systems that have been professionally planned and installed.
Scope of delivery
| Component | Description |
|---|---|
| Device | 1 x Vanbase Fuse |
| Documentation | Operating manual in digital form |
Before starting the installation, the delivery must be checked for completeness and the device must be checked for visible transport damage. A damaged device must not be installed or operated.
