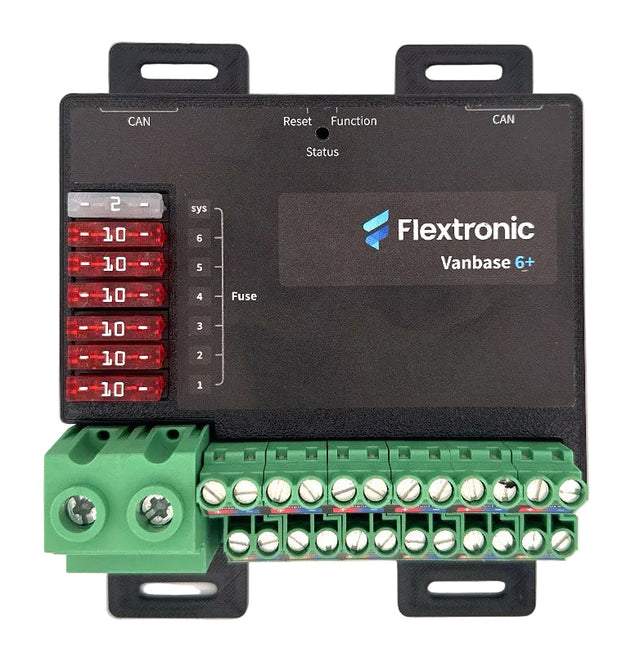

The Vanbase 6+ is a compact lighting control system with 6 dimmable outputs for use in DC electrical systems in the living area of vehicles.
It is intended for use in electrical systems from 10 V to 30 V DC and provides space-saving, clearly arranged and expandable control of lighting and switching functions.
- Very space-saving design
- Installation with a screwdriver only, without cable lugs or ferrules
- All connections are located on the underside
- Extra-large input terminals up to 35 mm²
- Bluetooth included
- 6 automotive blade fuses to protect the outputs, with status display in the app
- 6 dimmable outputs with current measurement in the app
- 6 digital inputs, e.g. for push buttons
- Freely expandable via CAN bus
Typical applications are interior lighting, ambient lighting, luggage compartment lighting, cab lighting and bathroom lighting, as well as exterior lighting, for example for an awning, the surrounding area or the underbody.
The safety instructions must be read in full and observed before installation.
Intended use
The Vanbase 6+ is intended for controlling and fusing suitable DC loads within the technical data specified in this manual. Operation is permitted only in DC electrical systems that have been professionally planned and installed.
Model and firmware version
This manual applies to model versions v2 to v8 and refers to firmware version core/v53.
The model version can be read out in the app as soon as BLE is activated on the device.
Scope of delivery
| Component | Description |
|---|---|
| Device | 1 x Vanbase 6+ |
| Documentation | Operating manual in digital form |
Before starting the installation, the delivery must be checked for completeness and the device must be checked for visible transport damage. A damaged device must not be installed or operated.
